Electrical Drawings

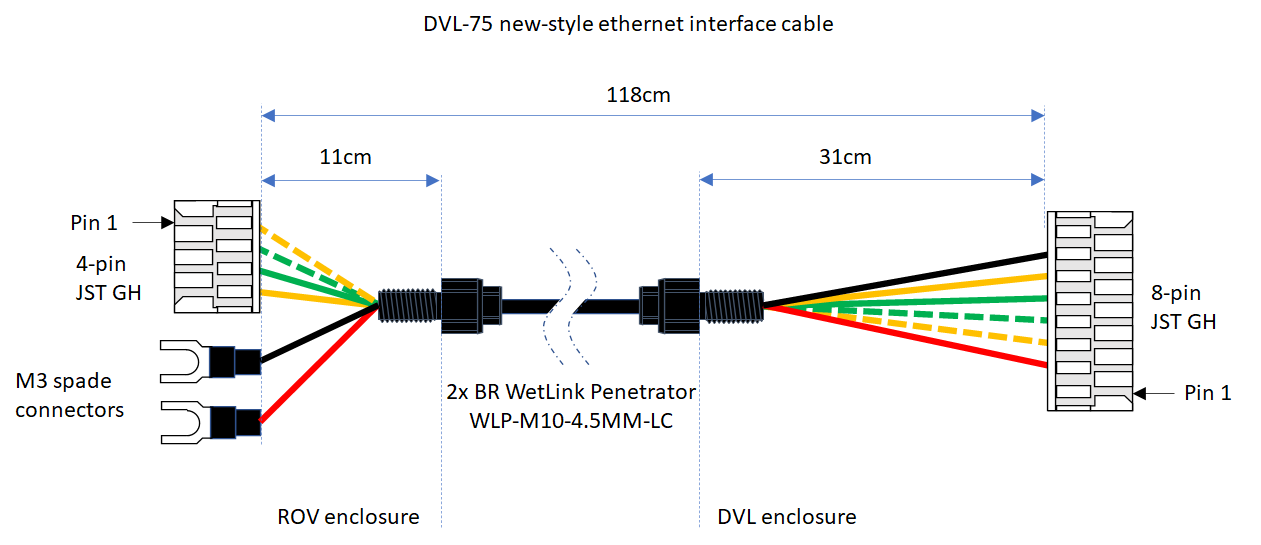

Power over Ethernet (POE) Cabling

PreviousDVL Serial Connection Example NextStandard Ethernet Pinouts

Last updated 1 year ago

WARNING: The DVL cannot accept 48V POE power, which is a common POE supply voltage! Please respect the maximum 24V voltage specs.
