Ethernet Connection to Transceiver (Simple)

If your receiver or transceiver needs to operate over Ethernet (e.g., to use a longer connecting cable), or it needs to connect to the ROV's Ethernet network, you needs to provide an Ethernet power injection and a network switch to connect the transceiver / receiver to the ROV Ethernet. The are many ways to do this, but the simplest is to use an optional Cerulean Network Hub, which provides the required data and power connections.

We support connecting to a PC running our SonarView software.

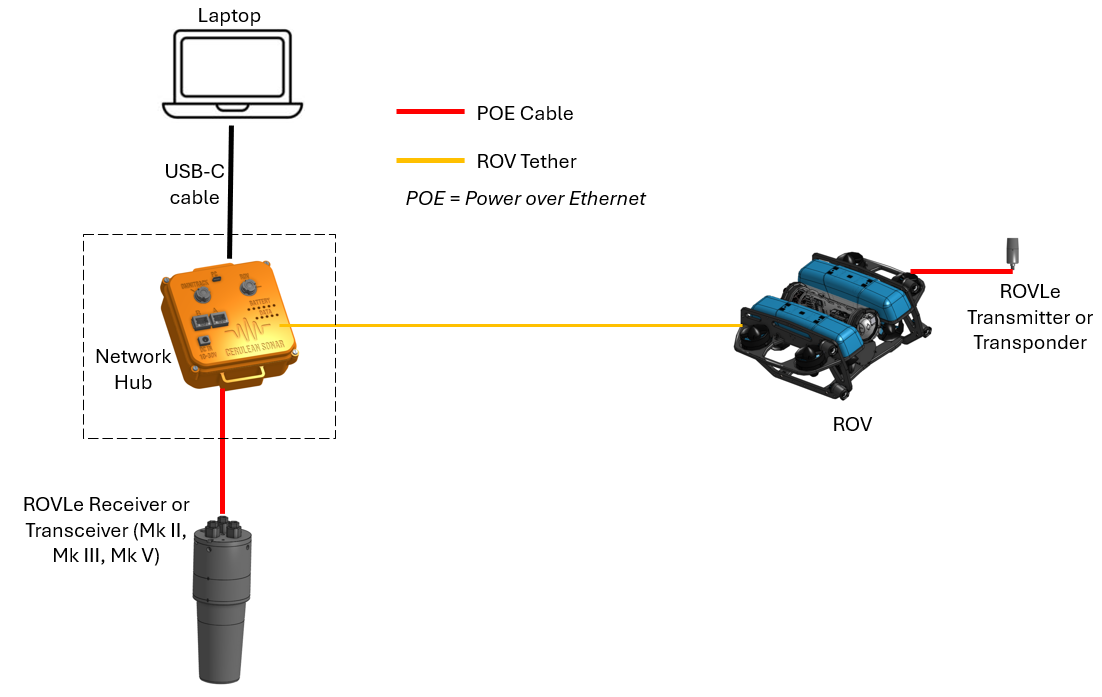

The image below shows how a network hub fits into an ROV system.
