# Standard Cabling Options

Cables include a Blue Robotics M10 WetLink penetrator on the ROVL end, and the appropriate JST-GH connector(s). The other end has the indicated termination.

The usable length noted in the captions is assuming installation on an [Omnitrack ](https://app.gitbook.com/o/ObqHkwNyPYYuN5SMJXLW/s/iGep5P4JoGKQtExRT40W/)float.&#x20;

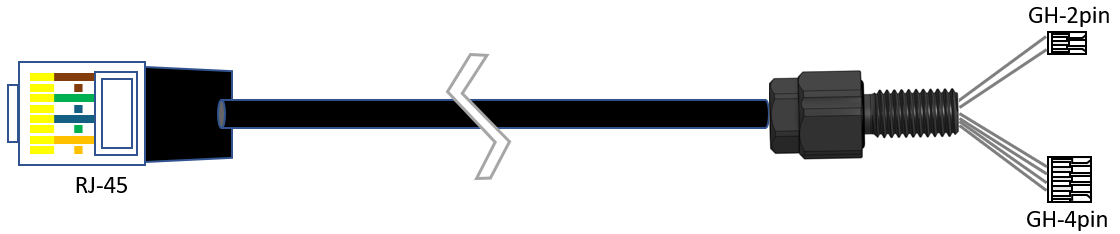

### Power-over-Ethernet Cables (RX)

<figure><img src="https://2814148991-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlN2lfY7yE0hWlcn6W1BS%2Fuploads%2FHBqf0FoVfeak4PsuqAjQ%2Fimage.png?alt=media&#x26;token=60346fb9-e25f-4791-b10d-fe4c52b653d0" alt=""><figcaption><p>POE cable in lengths of 6 meters (4.5 meters usable), 20 meters (18.5 meters usable), 50 meters (48.5 meters usable)</p></figcaption></figure>

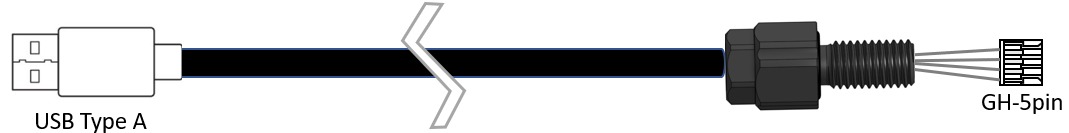

### USB Cable (RX)

<figure><img src="https://2814148991-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlN2lfY7yE0hWlcn6W1BS%2Fuploads%2FIX1SoYdPignob1zhkRW6%2Fimage.png?alt=media&#x26;token=d011391d-6d9f-45c6-8ddf-9fa7819cb254" alt=""><figcaption><p>USB cable is available in 5-meter length (max allowed by USB standard) (3.5 meters usable)</p></figcaption></figure>

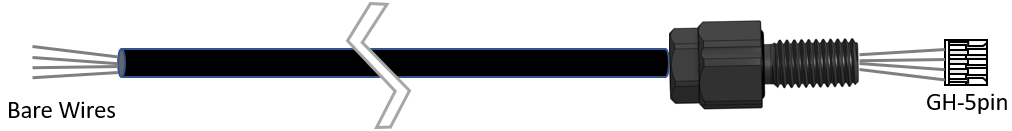

### Serial Cable (RX or TX)

<figure><img src="https://2814148991-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlN2lfY7yE0hWlcn6W1BS%2Fuploads%2FoUsxlCLAGsaR7feeNCXO%2Fimage.png?alt=media&#x26;token=5b3033ed-72ca-4001-a557-e9bf5c15219b" alt=""><figcaption><p>Serial cable is available in 1.5-meter length (max allowed by serial TTL), not suitable for Omnitrack or Mk V use</p></figcaption></figure>

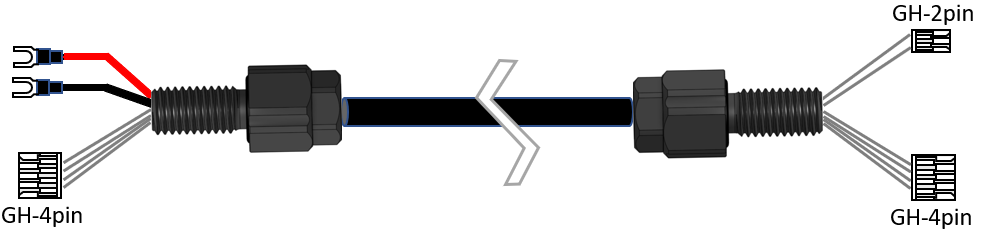

### Ethernet: BlueBoat Wiring Harness (RX), Blue ROV Wiring Harness (Mk V TX)

<figure><img src="https://2814148991-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlN2lfY7yE0hWlcn6W1BS%2Fuploads%2FOedPc1mCv3l97PpkGvwR%2Fimage.png?alt=media&#x26;token=98c70257-f5b8-48ef-bc74-e5fd060a7cfa" alt=""><figcaption><p>Sized to work with the <a href="https://app.gitbook.com/o/ObqHkwNyPYYuN5SMJXLW/s/iGep5P4JoGKQtExRT40W/">Omnitrack </a>BlueBoat mounting</p></figcaption></figure>

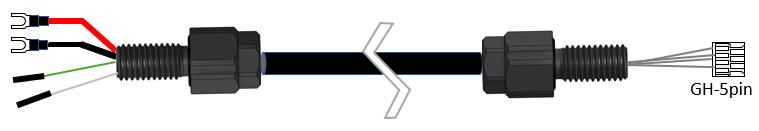

### Power Cable (Mk II, Mk III TX)

<figure><img src="https://2814148991-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlN2lfY7yE0hWlcn6W1BS%2Fuploads%2Fqxq7dJfC4arQdp4t6g71%2Fimage.png?alt=media&#x26;token=ea078fc4-9f6a-4f40-bf7e-92bae7df55c7" alt=""><figcaption><p>Sized for BlueROV</p></figcaption></figure>
