# ROV/Deepside Mounting

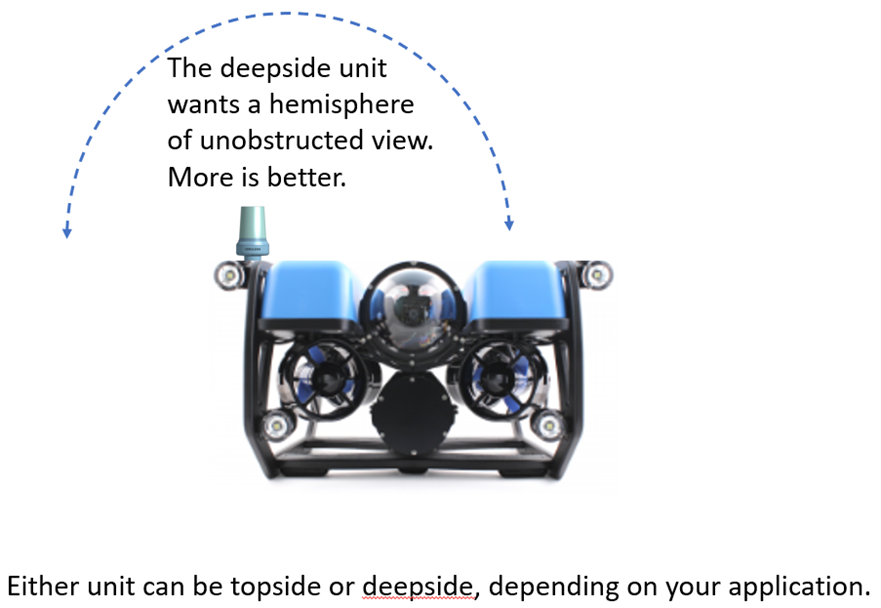

Either the transmitter of the receiver can be mounted on the ROV or deepside unit. Typically, the transmitter is on the deepside.

![](https://content.gitbook.com/content/lN2lfY7yE0hWlcn6W1BS/blobs/ZQYNE2M1CWGSy27y7j0k/image.png)

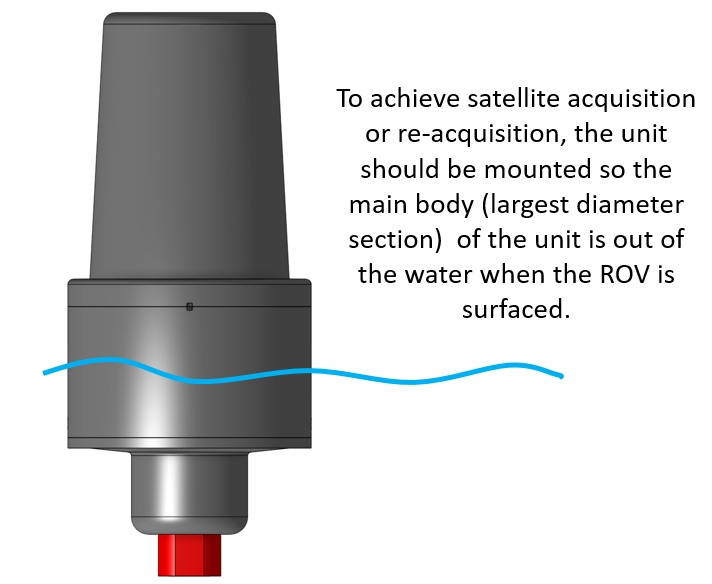

#### Autosync Units need to have a view of the GPS satellites

![](https://content.gitbook.com/content/lN2lfY7yE0hWlcn6W1BS/blobs/hpNLt491ep3OlSRDZvbY/image.png)

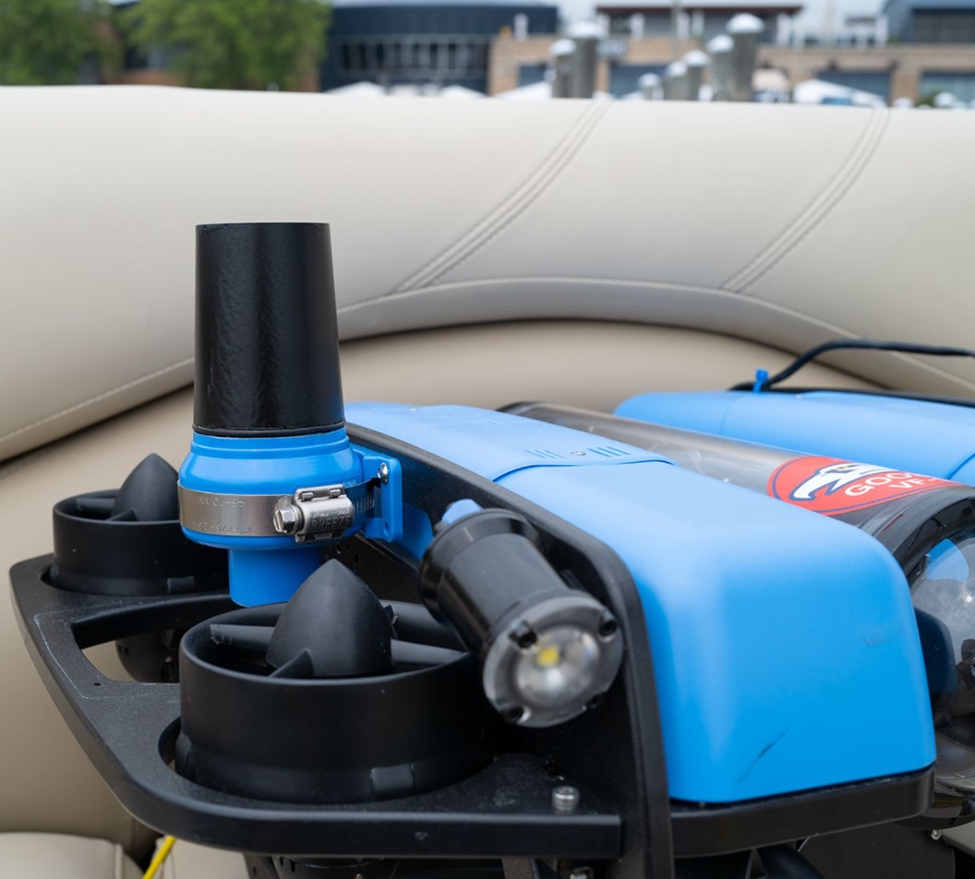

#### "P" package Mk II transmitter or Mk III transceiver mounted on an ROV. Cerulean Sonar supplies a mounting block and a hose clamp for mounting a deepside unit to an ROV.

![](https://content.gitbook.com/content/lN2lfY7yE0hWlcn6W1BS/blobs/c1MpDMtYDZ2uQSLQlOnq/image.png)

### ROVLe Mk V Transmitter / Transponder mounted on a BlueROV2 Heavy ROV using the suppled mounting bracket

<figure><img src="https://2814148991-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlN2lfY7yE0hWlcn6W1BS%2Fuploads%2FmMiwJJN5z5JKISHPu4ot%2FIMG_6557.jpg?alt=media&#x26;token=f0416235-a252-4766-8c4f-2d857515b702" alt=""><figcaption></figcaption></figure>
