# CAD Models and Drawings

[CAD Models OS450 FS](https://drive.google.com/drive/folders/1MsPfb9RdiA9Xsy18yFGZ0U06RC_Ofr0I?usp=sharing)

[CAD Models OS450 Compact](https://drive.google.com/drive/folders/1j51sMzwZ-20G1E1LlvQZPJZzAZYfgD2H?usp=sharing)

[CAD Models OS450 SS](https://drive.google.com/drive/folders/1eFHbaS8pBawAroLxRh1RxJFznDmww53g)

See the links above for:

* Models of the Omniscan 450 FS, SS, and Compact

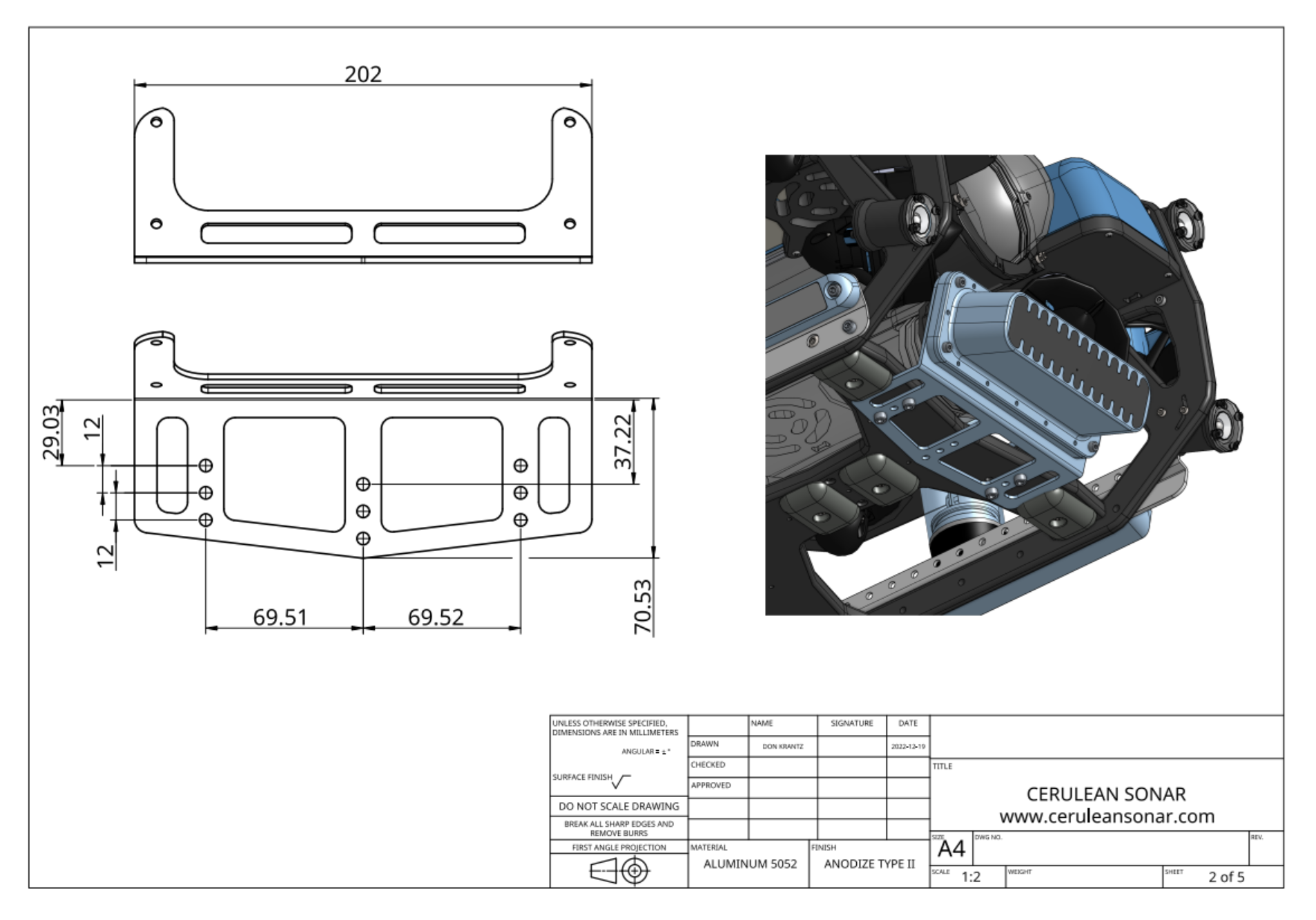

* Omniscan FS mounting bracket for Blue Robotics BlueROV2

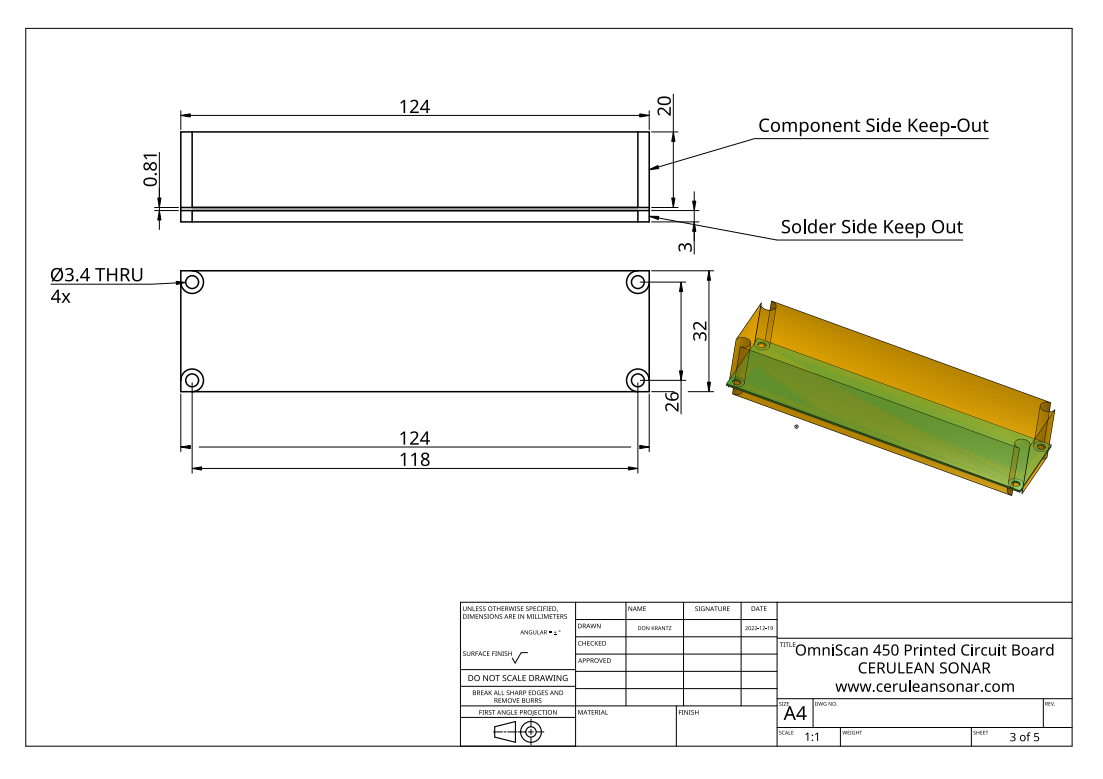

* Models of the SS electronics

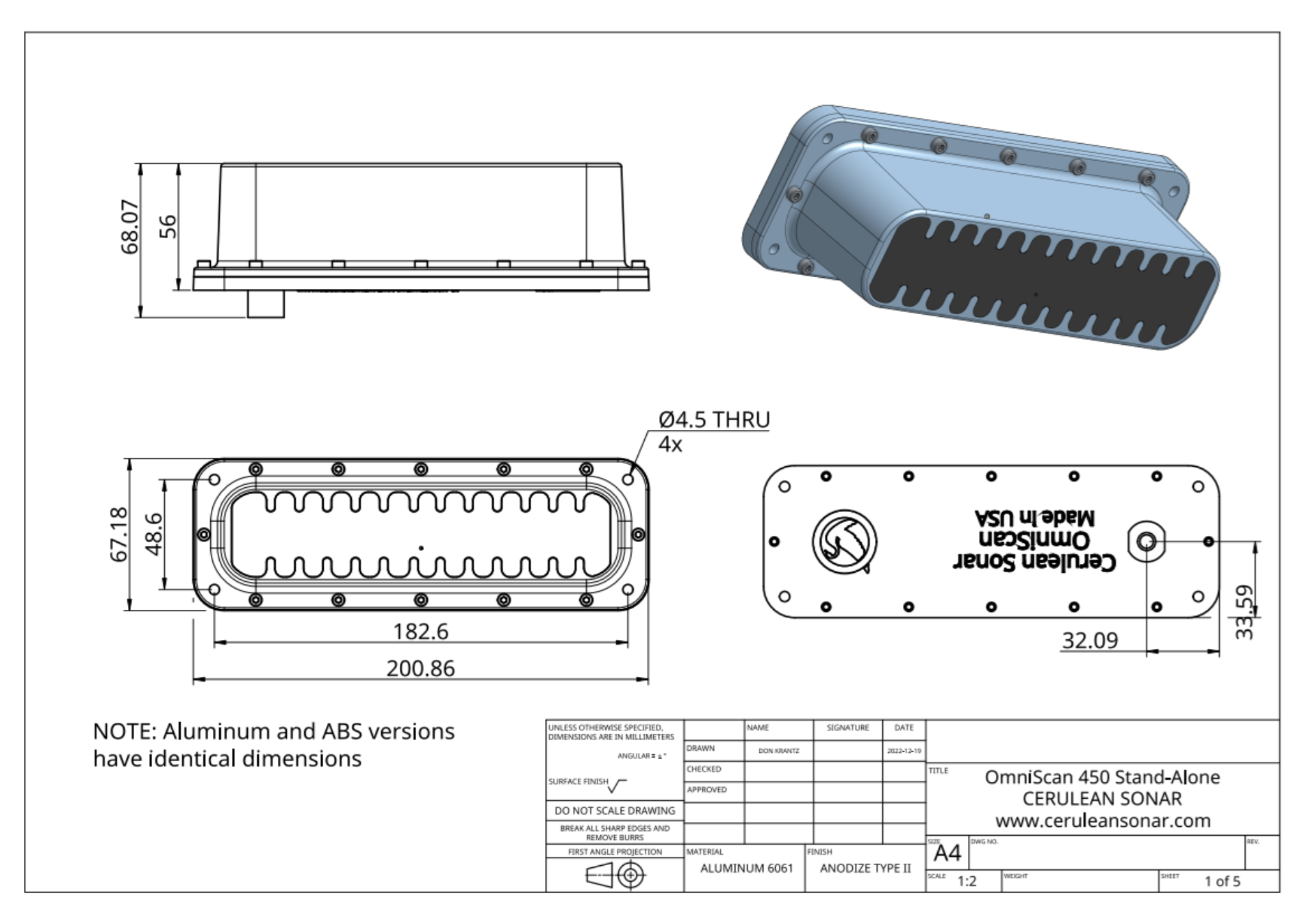

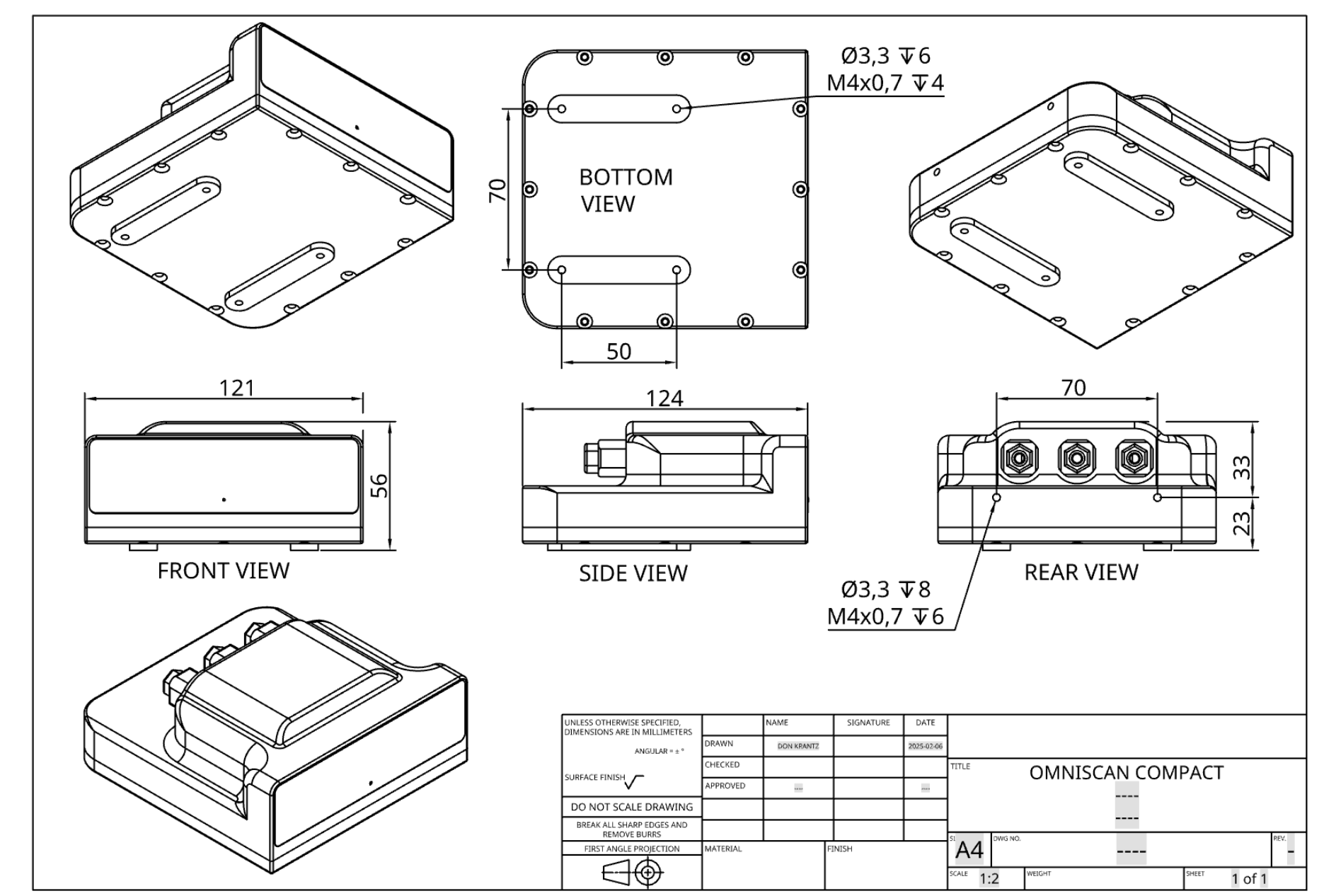

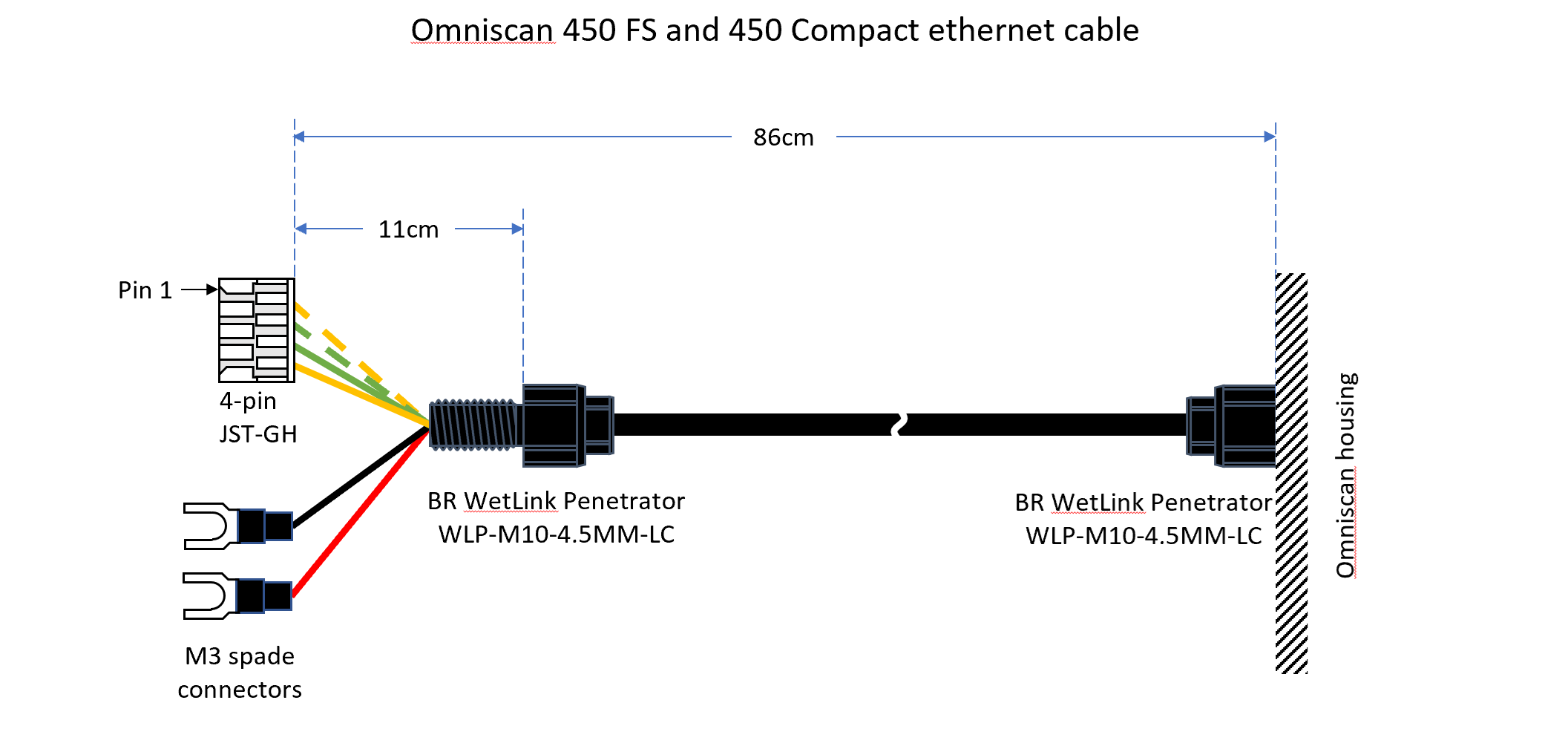

**Omniscan 450 FS and 450 Compact**

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2FYzV3WZOBxrFIQtNMvUu1%2Fimage.png?alt=media&#x26;token=86590121-db4c-4001-87b2-46cb31b550a8" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2FinBo1KIHbh8s337v1q0E%2Fimage.png?alt=media&#x26;token=460c2c7c-282a-4233-b0b9-ba2cc5883cff" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2FglNqpk1mwcvejc9NsGKp%2Fimage.png?alt=media&#x26;token=41a7b7c0-ce7e-43d0-894c-d631fe2a85ad" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2FmtdgwIl2GwR2CksEzMHT%2Fimage.png?alt=media&#x26;token=b6e6c006-6201-4478-b582-63329e67a5f5" alt=""><figcaption></figcaption></figure>

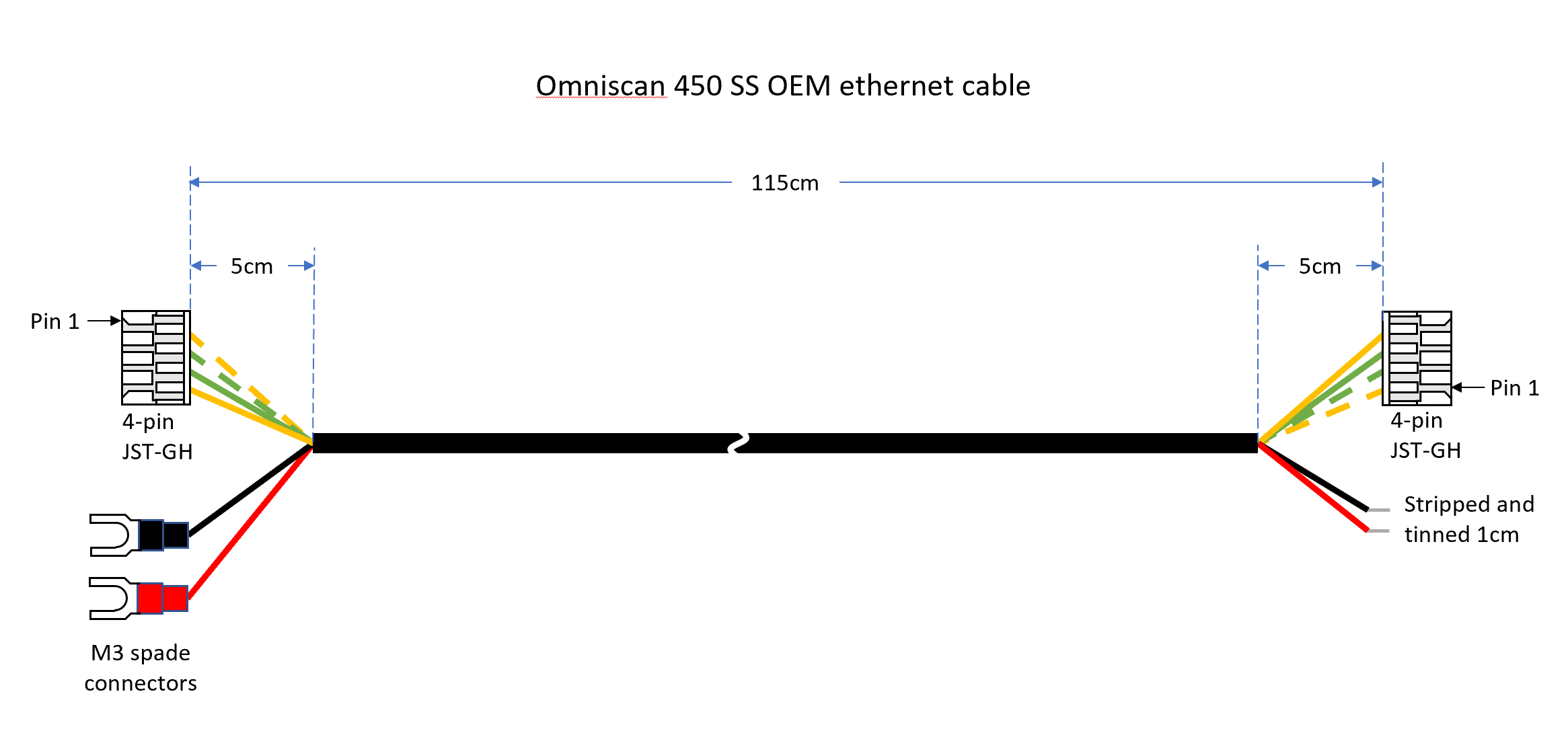

**Omniscan 450 SS**

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2Flut8K52SO2mVH8rktrFF%2Fimage.png?alt=media&#x26;token=08f3d0cf-4419-4ceb-8455-3d16698b5a7f" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2F61FanFhuBenBU1x66rqF%2Fimage.png?alt=media&#x26;token=f89dd9d7-87e3-47eb-821e-15adb3953645" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2FonyleWTjOcpbCIAfkXWS%2Fimage.png?alt=media&#x26;token=ce7bb5eb-5473-4f8b-8d87-02439d7bd153" alt=""><figcaption></figcaption></figure>
