# Electrical Connection

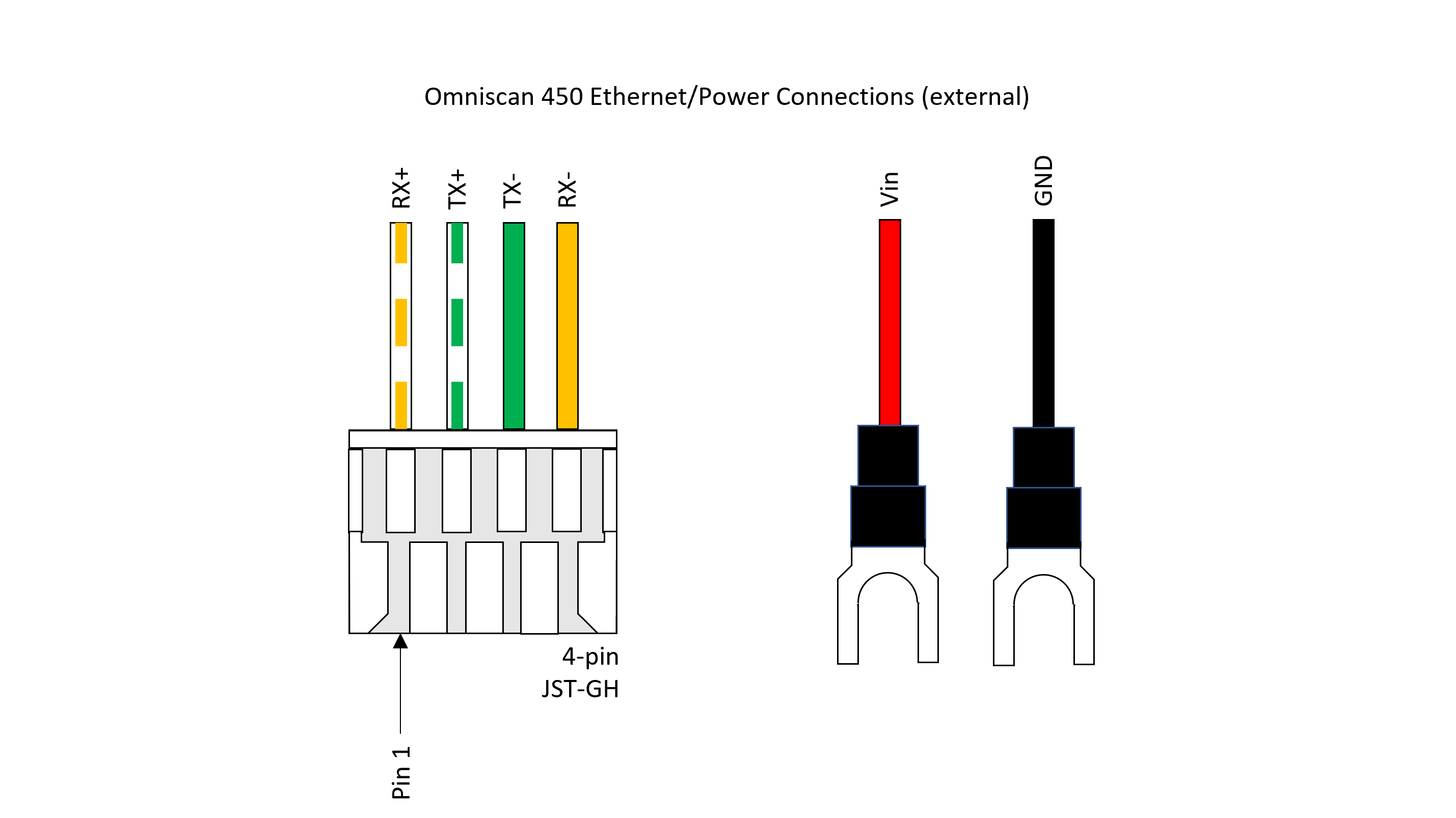

Provided external connections are a 4-pin JST-GH for connection to a Blue Robotics Ethernet Switch or RJ45 adapter, and #6 spade connectors for connecting to power (10-30 Volts DC).

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2FlbZuGeEcn9m7Ij1UqWrh%2Fimage.png?alt=media&#x26;token=896c1cfa-7006-41db-8f15-26dacc24587f" alt=""><figcaption></figcaption></figure>

A converter is also provided for adapting from the 4-pin JST-GH to a standard RJ45.

![](https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2FjzTZICDMJEe6gnuX85Eh%2Fimage.png?alt=media\&token=9b921904-105b-4e1c-8ffe-e41e49c2da90)

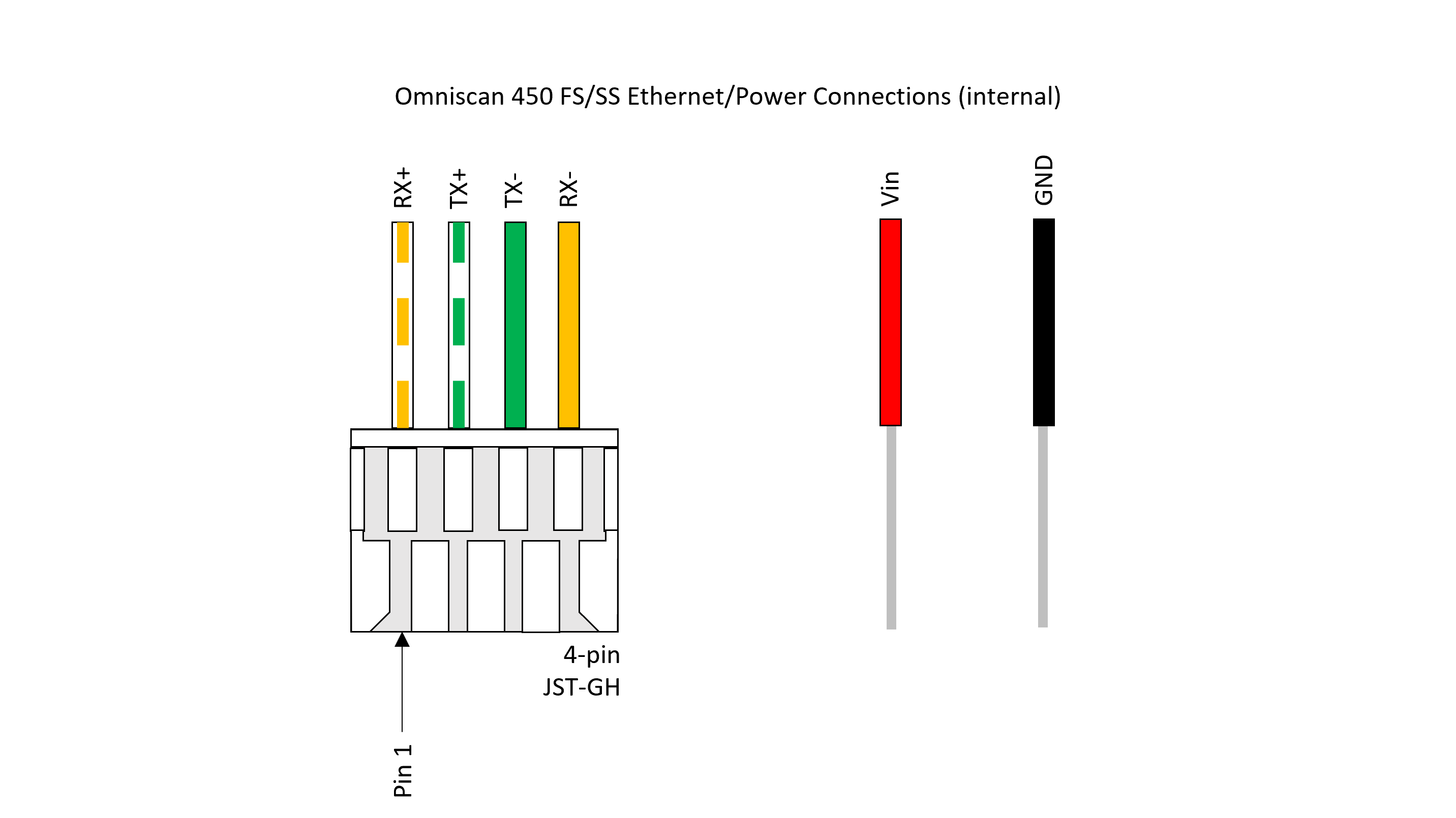

Connection to the Omniscan 450 FS and Omniscan 450 SS circuit board is made through a 4-pin JST-GH for ethernet and a pair of stripped wires for power. Pinout is shown below.

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2F8MtZoYO9yQsBSQGD0ZCM%2Fimage.png?alt=media&#x26;token=90693f21-b152-43a3-81f6-287fb2b935e1" alt=""><figcaption></figcaption></figure>

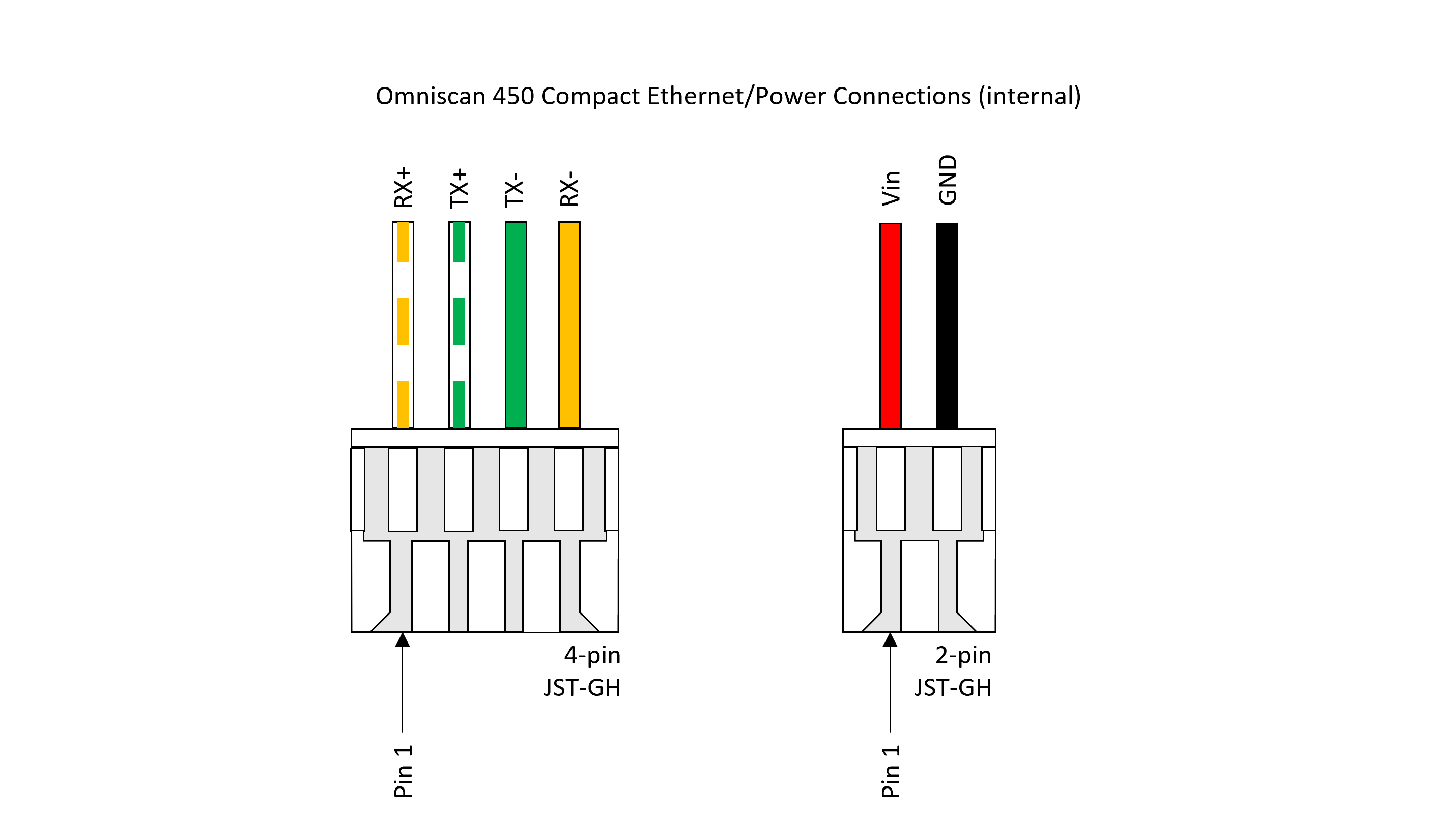

Internal connection for the OS 450 Compact uses a 2-pin JST-GH for power as show below.

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2Fr0KOHQrPV7R2MGJ1BR4u%2Fimage.png?alt=media&#x26;token=9983ec6c-6ec7-4be6-921d-257aec05e327" alt=""><figcaption></figcaption></figure>

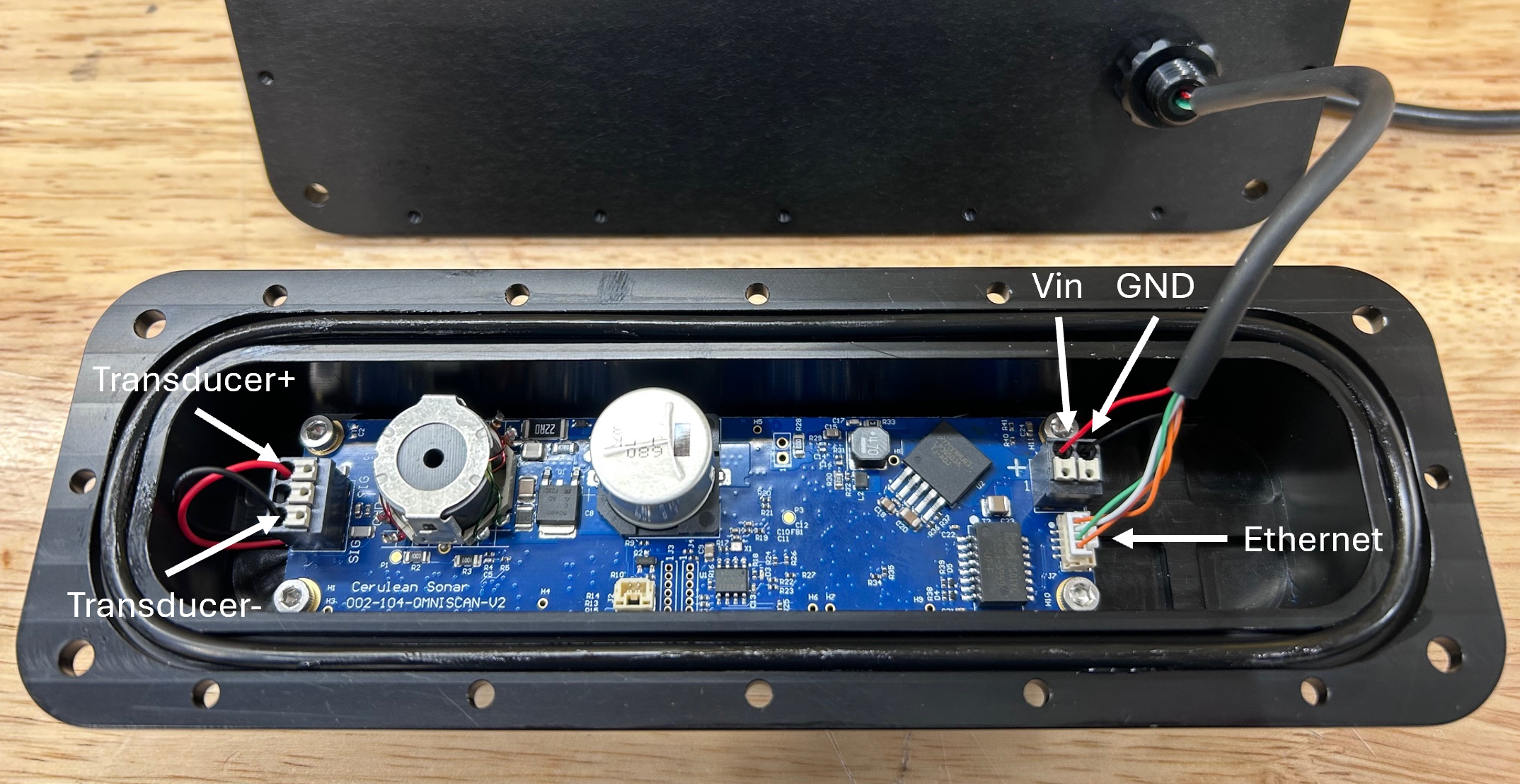

Omniscan FS internal connections to the circuit board are shown below.&#x20;

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2F6ccVTKtYVAuh5zZEecfN%2Fimage.png?alt=media&#x26;token=0afca494-e60f-4290-b3df-c05f446a2f40" alt=""><figcaption></figcaption></figure>

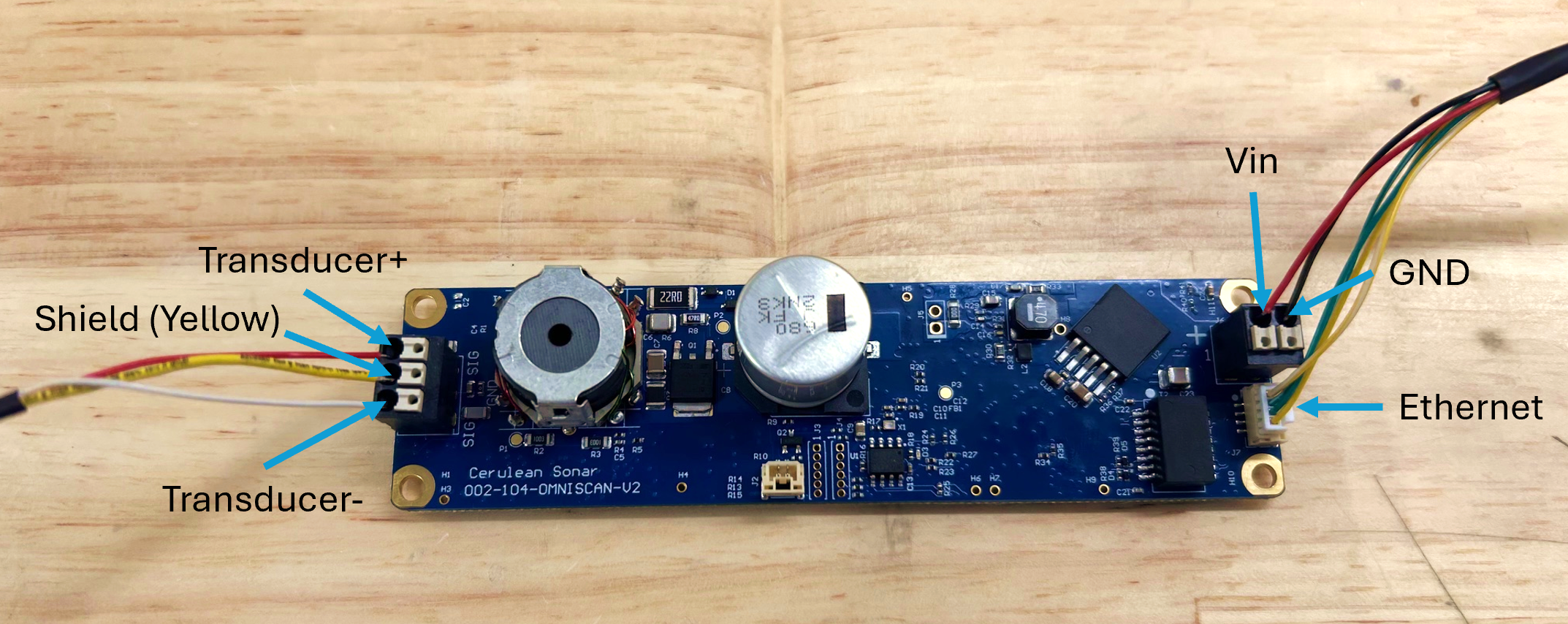

And below are Omniscan SS connections to the circuit board.

<figure><img src="https://3592855831-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHdQbBpPtUatcIjbJpCQn%2Fuploads%2F0DyyvmA6HX9UzIid7TSF%2Fimage.png?alt=media&#x26;token=d5c7e884-dd89-47ab-b1c2-37e48662f7c3" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
Note: polarity of the transducer+ and transducer- wires is not critical, and some versions may have a black wire instead of a white wire.
{% endhint %}

When attaching the stripped wires to the circuit board, the wires are inserted one at a time into their respective connector. Press down on the button corresponding to the wire you wish to insert with either your finger or a flat-blade screwdriver, insert the wire until it stops, then let go of the button.
