# Dimensions

### Network Hub Top View

<figure><img src="https://3944491380-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPHGQCLttzXhgCL4eqPS5%2Fuploads%2FhvBIYP4JtNwhkpqScNQL%2Fimage.png?alt=media&amp;token=d71fa42f-c733-4ea1-b793-e8544604783f" alt=""><figcaption></figcaption></figure>

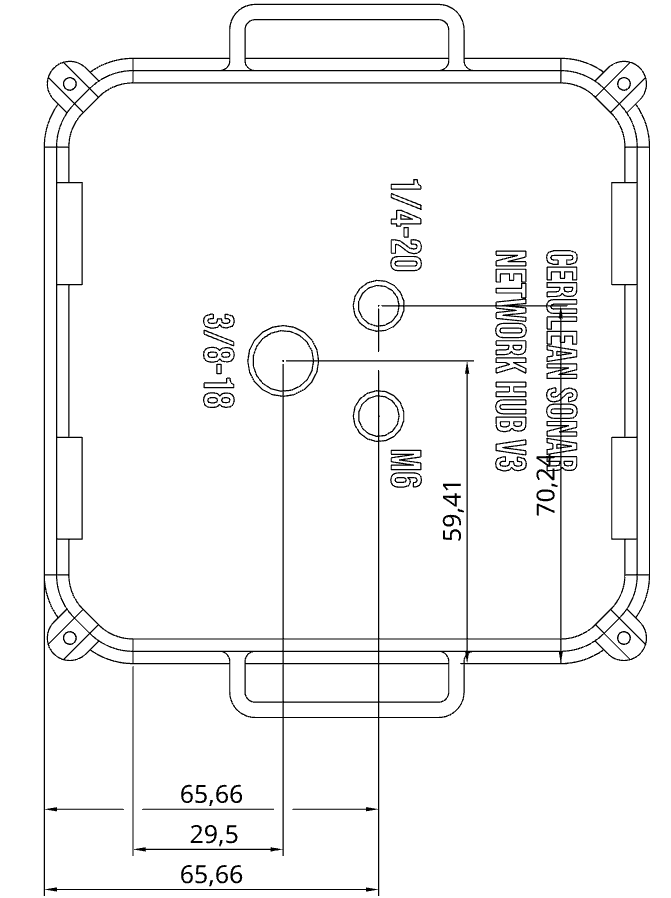

### Network Hub Bottom View

<figure><img src="https://3944491380-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPHGQCLttzXhgCL4eqPS5%2Fuploads%2Fdmqs5ooqNYCm5dZQWGg6%2Fimage.png?alt=media&amp;token=dd2e269e-bee7-4b1b-bc18-167b181af5a4" alt=""><figcaption></figcaption></figure>

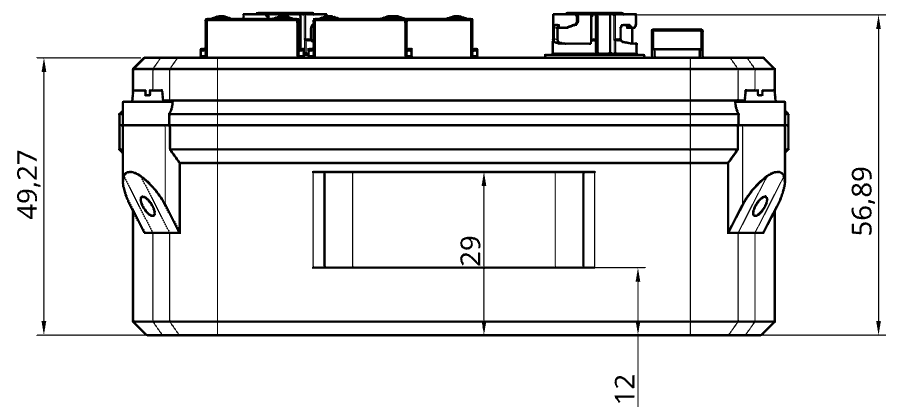

### Network Hub Side View

<figure><img src="https://3944491380-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPHGQCLttzXhgCL4eqPS5%2Fuploads%2FEWRe0r4uF2ZNbZdYHFX9%2Fimage.png?alt=media&amp;token=eb3007b1-f8b7-4561-954b-69ff846c09bd" alt=""><figcaption></figcaption></figure>
