The Omniscan 450 comes in several models. The Omniscan 450 FS (forward scanning) comes in a 100m depth-rated package, a 300m rated package, as well as a compact 300m rated version. In addition, there is a SS (side scanning) version. This manual covers all models. Note that although the model designations indicate forward and side scanning, in reality either one can be used for either application. The real difference is in the transducer and the packaging.

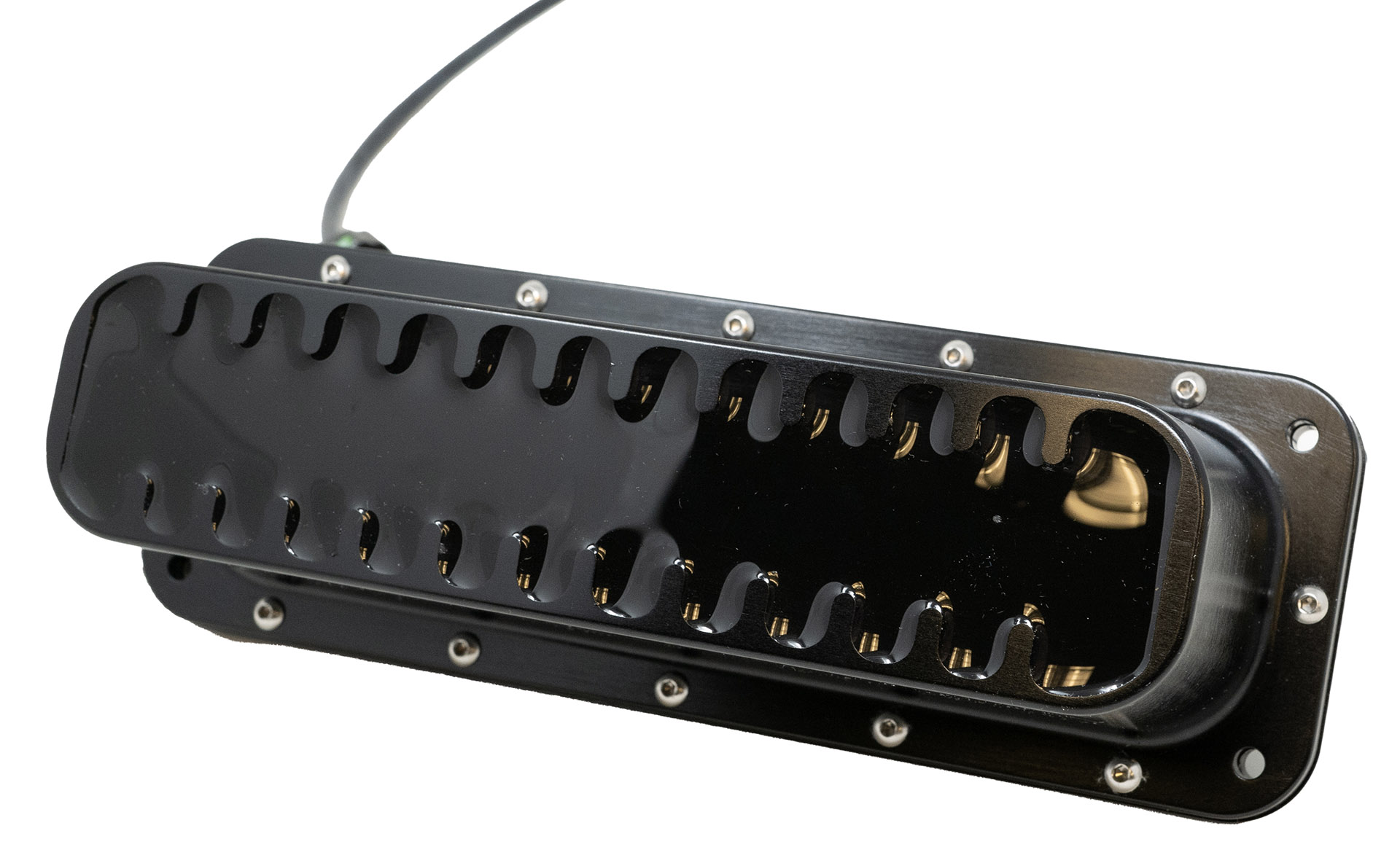

The Omniscan 450 FS pictured below is fully packaged in its own enclosure housing the transducer and the electronics module. 100m and 300m enclosures are available.
The Omniscan 450 Compact is show below. It has slightly reduced resolution and range compared to the standard FS, but is housed in a form factor supported by most small ROVs. Additionally, it can acts as a power and Ethernet hub for two additional Ethernet devices while using only a single Ethernet connection to the vehicle.

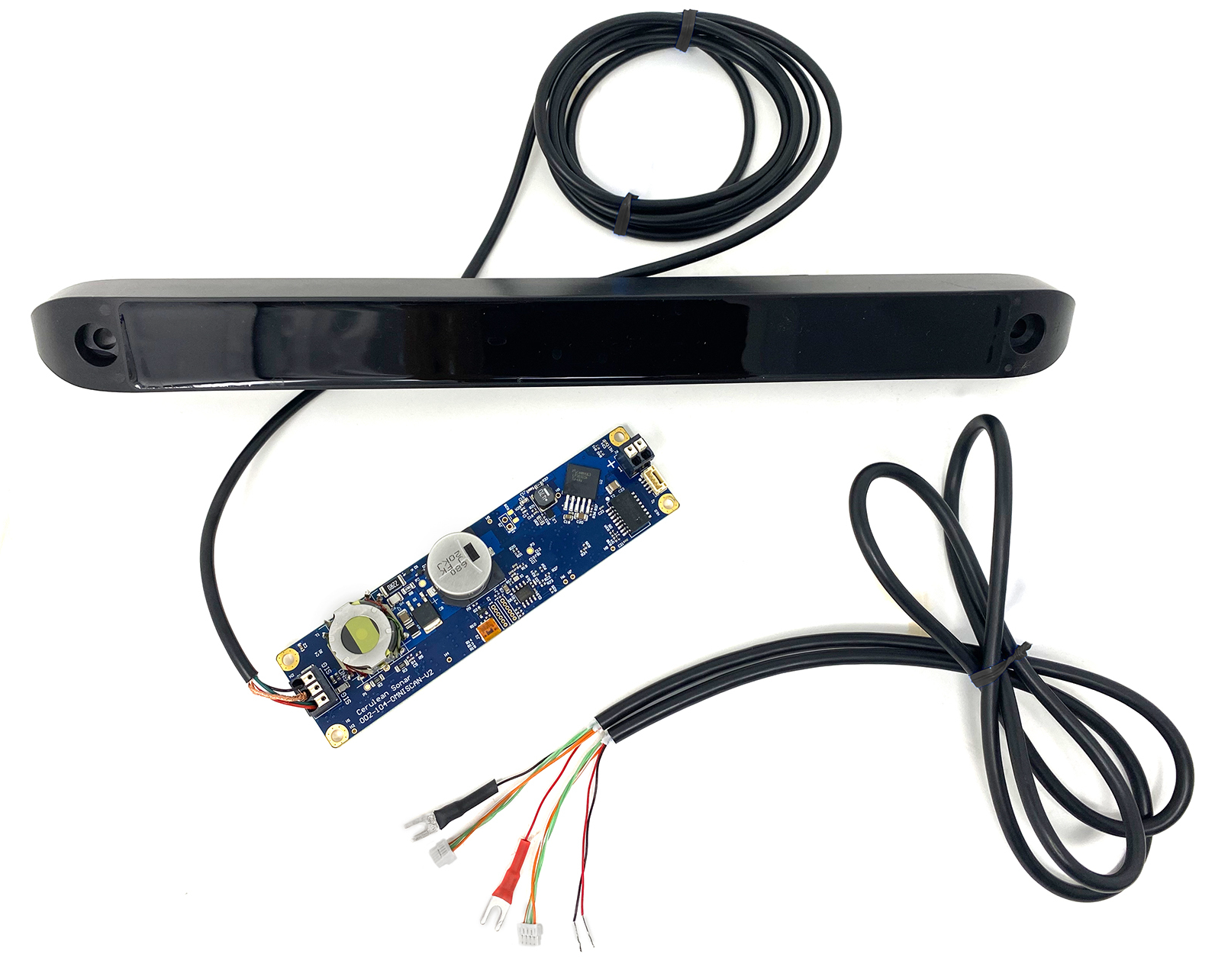

The Omniscan 450 SS pictured below has a separate transducer and electronics module. The transducer is 50% longer than the FS which gives a narrower beam and longer range. It is rated at 300m. The electronics module must be housed in the user's water tight enclosure.
Omniscan 450 FS unit with 1m ethernet cable terminated in 4-pin JST GH (compatible with Blue Robotics Ethernet Switch) with separate power and ground connections.
4-pin JST GH to RJ45 (female) Adapter
4-pin JST GH to 4-pin JST GH Adapter
4-pin JST GH extension cable (200mm)
Omniscan 450 Compact unit with 1m ethernet cable terminated in 4-pin JST GH (compatible with Blue Robotics Ethernet Switch) with separate power and ground connections.
4-pin JST GH to RJ45 (female) Adapter
4-pin JST GH to 4-pin JST GH Adapter
4-pin JST GH extension cable (200mm)
Omniscan 450 SS Transducer with 1m shielded cable.
Omniscan 450 electronics module
1m ethernet cable with 4-pin JST GH connectors (compatible with Blue Robotics Ethernet Switch). Cable also has another pair of wires for supplying power.
4-pin JST GH to RJ45 (female) Adapter
The Omniscan 450 is designed for use with Cerulean SonarView:
